Sump Pump Systems in Northern Colorado
Sump pump installation & backup pumps in Colorado
Colorado Crawl Space uses the TripleSafe sump pump to protect Northern Colorado crawl spaces against flooding and pooling water.
A sump pump can be an incredibly valuable resource in Colorado homes. When water gets into the crawl space, the sump pump is what protects you from a flood that could cause expensive property damage. If you've had issues with flooding, leaks, or water seeping through your foundation -- and even if you haven't -- it's smart to protect your home with a quality sump pump from Colorado Crawl Space.
We install several cast-iron sump pumps that provide reliable water removal in Colorado homes. These sump pumps have been tested in the harshest conditions and passed with flying colors, and you can count on them to protect your home.
If you're interested in adding a sump pump to your home, give us a call today at 1-888-714-6653 or click below to get started. We offer service estimates in Vail, Aspen, Breckenridge and throughout the surrounding areas.
Before and After
-
Before
After
Sump pumps fail over time. Most of the time we can replace them with a SmartSump Pump System: a 1/3 HP M53 Zoeller cast iron pump, which is placed in a deep and durable liner with an airtight lid with an airtight floor drain, CleanPump Stand, and battery powered WaterWatch Alarm System.
The liner is installed into stone and sits flush to the grade of the Earth floor. The 1.5” discharge line runs through the rim to the exterior. The exterior discharge line includes an IceGuard to prevent ice buildup, 10’ of 3” PVC discharge line buried several inches for grass to grow over it, & a LawnScape Outlet to allow gravity to expel water and help prevent debris from entering the discharge line. This unit pumps 2,580 gallons per hour at a 5’ head. After tying in the CleanSpace Crawlspace Encapsulation System into the top of the liner and tightening down the lid - This crawlspace is protected from the devastating effects of groundwater seepage - had it been left unchecked, structural damage most likely would have cost the homeowner 10x more sometime in the future. Looks good & functions great!
-
Before
After
Sometimes during home rennovation projects, issues pop up - or rather spring up from the ground (as in ground water seepage). The source? possible leak in the water main or ground water seepage. Either way 1st things 1st - Fix ground water seepage. We installed a SmartSump sump pump system - discharging incoming water from the basement to the exterior - 10' away from the structure where it can water the lawn. Next phase of the project: Isolate the home from the earth with the CleanSpace Encapsualtion System - Stay Tuned.
-
Before
After
We pulled out years of rodent carcasses, droppings, pine needle bedding, and pine cone food storage from this crawlspace. The earth was lightly regraded for the durable encapsualtion system. We boarded up the holes where rodents had chewed through, added copper wire mesh to and penetrations, and closed cell spray foamed 2" - 3" thick onto the perimeter rim assembly. The walls were already insulated with 2" foamboard, so we sealed the gaps between these as well and tied our floor liner into the 2" foamboard - which doubles as a wall liner to deflect foundation wall moisture down under the liner.
-
Before
After
This crawlspace had many intrusion points and air gaps where rodents were able to move in and out. This resulted in pine cones and destroyed insulation. We removed the debris and insulation. Then we sprayed a botanical disinfectant on all horizontal surfaces. To prevent the rodents from returning we screwed in blocks of wood to any larger holes, stuffed air gaps with copper wire mesh and spray foam. Lastly we encapsulated the earth and walls to shut down any ground water seepage & re-insulated the rim assembly to help prevent heat loss & save energy.
-
Before
After
This dirty crawlspace needed a complete makeover. This is the main reason for doing the crawlspace right the first time! A cheap solution to crawlspace problems is not cost effective when we have to tear everything out a few years later in order to remediate mold and rodent infestation. To effectively control the ground water we installed a drainage system to a new airtight SmartSump Pump System to discharge water 10' past the foundation on the exterior. Secondly, we installed drainage matting under our 20 mil cord reinforced CleanSpace Crawlspace Encapsulation System & properly fastened and sealed it around the perimeter and central footings. Lastly, we stuffed copper wire mesh and air sealed the perimeter rim assembly and subfloor penetrations and reinsulated the subfloor for protection against rodent intrusion and heat loss prevention. This would have been a lot easier if it was done right during construction, but now the homeowners rest assured their home is protected from the ground up!
-

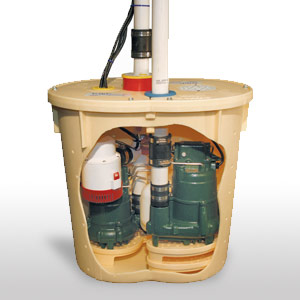

TripleSafe™ Sump Pump System

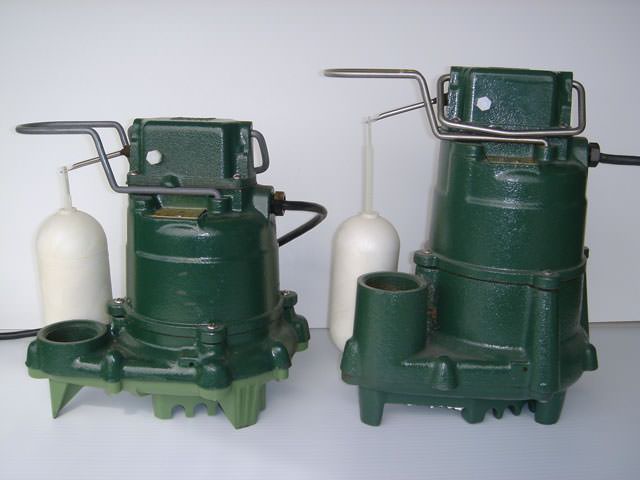

The TripleSafe™ Sump Pump System provides three levels of protection for your home and your peace of mind. For normal functioning, the TripleSafe™ has a powerful, cast-iron Zoeller® ⅓ horsepower sump pump set at the lowest level. For heavy volumes of water or in case of primary pump failure, a second, more powerful Zoeller® ½ hp pump set a bit higher in the liner will take over. In case of a power outage, our UltraSump® battery backup sump pump, set at the highest level, will pump 11,500 gallons or more on a fully charged battery!
The ⅓ hp primary pump can discharge 2,220 gallons of water per hour at an 8-foot head, while the ½ hp secondary pump can discharge as much as 3,900 additional gallons of water per hour at an 8-foot head. In the case of a tripped circuit, power outage, or sump failure, your TripleSafe™'s UltraSump® Battery Backup System will kick in. A second battery can be hooked up to a single system for an even longer running time. All told, this system provides the ultimate protection for homeowners who have had issues with water in their crawl space.
-
UltraSump® Battery Backup System
The same weather that can flood your home can also knock out the power to your primary AC powered sump pump. That's why we created the UltraSump 4 powerpack system, which assures continuous protection. In the event your primary AC system loses power, your battery backup system will engage and begin removing water from your crawl space. The UltraSump 4 can pump out up to 12,000 gallons of water on a fully charged battery, which is enough to fill a swimming pool!
Our newest system features include illuminated plugs, battery-operated emergency LED lights, a resettable fuse, and is compatible with the TimeMachine data logger, which gives you instant access to real-time data about your system.
-

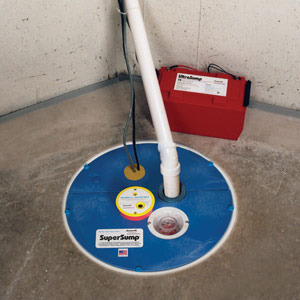

SuperSump® Premier Sump Pump System
For an effective and more economical solution, consider our SuperSump® Premier Pump System. It is engineered to help keep the crawl space dry and healthy for extended periods of time, even in times of heavy water intrusion. The SuperSump® includes a powerful Zoeller® ⅓ horsepower cast-iron sump pump, capable of pumping 2,220 gallons of water per hour at an 8-foot head out of your crawl space. The SuperSump® can also be installed with an optional UltraSump® Battery Backup Sump Pump, which can pump out 11,500 gallons or more on a single charge!
If you have had occasional water issues but not a severe flood, the SuperSump® may be the ideal option for your home. This complete system provides total protection, and like all of our sump pump systems, works perfectly with our drainage systems.
-

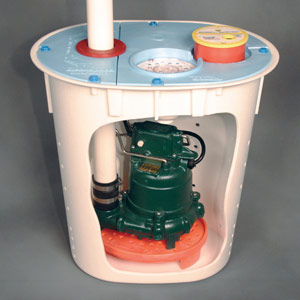

SmartSump™ Crawl Space Sump Pump System
If you're looking for a crawl space sump pump solution, the SmartSump™ Crawl Space Sump Pump System is the ideal option. The SmartSump™ is specifically designed for crawl spaces and can provide all the protection you need from leaks and floods. The SmartSump™ comes equipped with a cast-iron Zoeller® primary pump with the option of adding an UltraSump® Battery Backup Sump Pump. This sump pump is designed to fit with the CleanSpace® liner and has a sump alarm to ensure you are always aware of any water in your crawl space.
The SmartSump™ system comes with a reliable Zoeller® 1/3 horsepower sump pump capable of pumping 2,500 gallons per hour at a 5-foot head. This system is designed to fit with our crawl space encapsulation system, ensuring that you have a completely dry, clean crawl space.
-

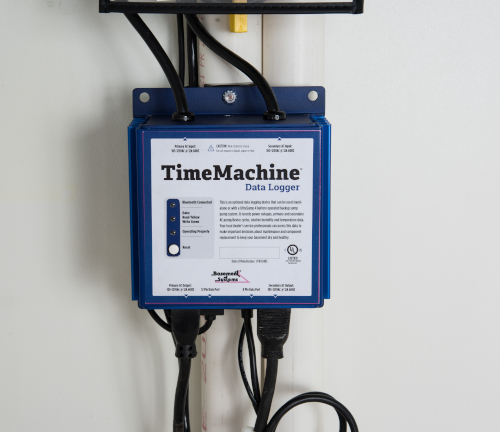

The TimeMachine Data Logger
Bring your crawl space sump pump into the data age with the TimeMachine. Our sump pump tracking technology reports your system's battery status, pump cycles, the below-grade space's relative humidity and temperature, and more. With this data, Colorado Crawl Space can better track and diagnose the health of your below-grade space and sump pump system.
For seamless, uninterrupted tracking, The TimeMachine reports up to 10 years of data via Bluetooth - which is viewable on an easy-to-use app available on both Apple IOS and Android. The TimeMachine is easy to install and allows you to monitor the status of your system at any time!
These key additional features will provide you with total peace of mind
Our sump pump systems include the following features:

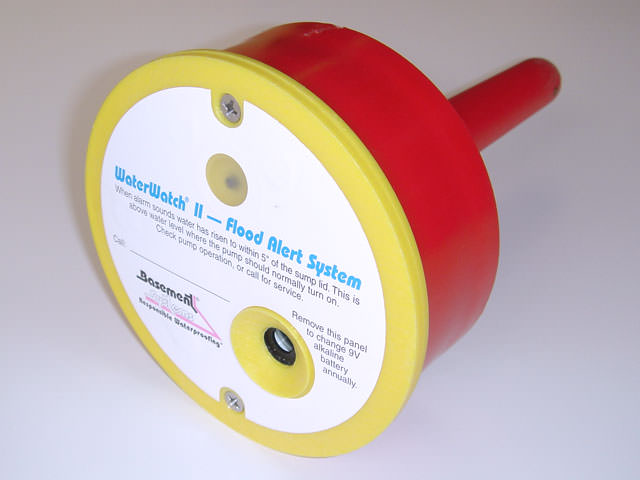

- WaterWatch® Alarm: Sounds off to let you know if water has risen past the point where the pumps should have turned on.
- SuperLiner Sump Liner: Large enough to keep your sump pump working properly without turning on and off repeatedly, but not so large that your liner goes too deep, making your sump pump wear out prematurely as it pumps out unnecessary water.

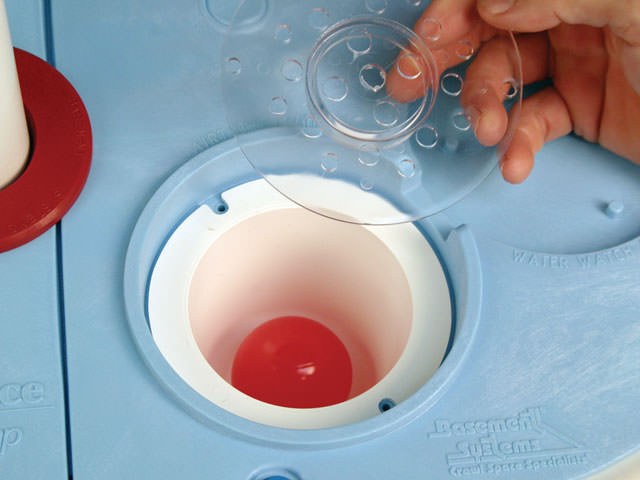

- Airtight Sump Lid: An airtight lid keeps odors and humidity out while protecting your sump from debris. Rubber grommets around all pipes and wires help maintain the airtight lid and also help to keep all PVC pipes steady and quiet.
- CleanPump Stands: These sump pump stands are installed to raise the pumps off of the bottom of the liner. Any silt or sediment that settles on the bottom of your sump pit will be kept away from your pump. These stands also allow for height adjustment of the pump if necessary.
Sump pumps should always be installed with a perimeter drain system to ensure that all water is drained to the sump pit and removed from the crawl space.
We stand by our products with expert installation, repairs & maintenance
In the same way that you wouldn't hire a waterproofer to fix your bathtub, you wouldn't hire a plumber to install a waterproofing system in your crawl space. When you choose us to install your sump pump, you can count on experienced and knowledgeable waterproofers who install sump pumps and foundation waterproofing systems every day. As part of the international Basement Systems network, we have access to the best products and training available, giving you confidence that we can protect your home from water damage.
In addition to installation, you can always count on Colorado Crawl Space for repairs should you ever need them. If anything goes wrong, we will be there to help you quickly get your system working and back to protecting your home. To prevent these issues, we also offer annual maintenance to ensure your system is working properly. During this process, we will inspect and clean the entire system, including the discharge lines. No matter what, you can count on us to help with your waterproofing needs!
Request a sump pump installation quote today!
If you're interested in a new sump pump or any of our other crawl space waterproofing products, contact us today to request your service estimate in Steamboat Springs, Carbondale, Avon, Gunnison, Rifle, Salida, Bailey or nearby.
